Data listed by product number

Model 1500 Pressure/Temperature Transducer



Spectre's Model 1500 transducer incorporates all of the features of the Model 1000 with the addition of a temperature output. It's large, raw sensor output (10-70X that of a bonded foil strain gauge device), Long term stability of the Model 1500 and standard RF!/EMI protection provide the most rugged and reliable transducer for industrial applications. Originally designed to withstand the rigorous testing requirements of defense and space applications, The Model 1500 offers aerospace performance to the industrial marketplace.



Data sheet

×

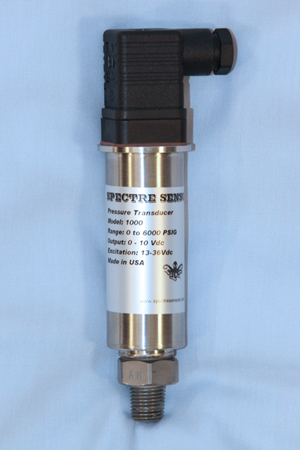

Model 1000 General Purpose Pressure Transducer



Spectre's Model 1000 is specifically engineered to eliminate the two most common problems with pressure transducers, noise and drift. It's large, raw sensor output (10-70X that of a bonded foil strain gauge device), The long term stability of Model 1000 and standard RF!/EMI protection provide the most rugged and reliable transducer for industrial applications. Originally designed to withstand the rigorous testing requirements of defense and space applications, The Model 1000 offers aerospace performance to the industrial marketplace.



Data sheet

×

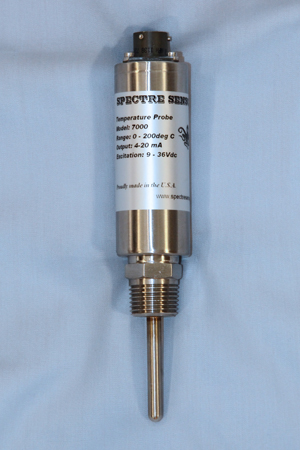

Model 7000 Temperature Probe



×

Model 80A Submersible Pressure Transducer



Data sheet

×

Model 80S Submersible Pressure Transducer



Data sheet

×

Model 80T Titanium Submersible Pressure Transducer



Data sheet

×

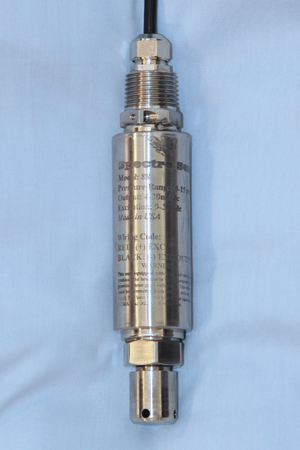

Model 88 Submersible Transducer



Data sheet

×

Model 400T Series Temperature Sensor



Spectre's Fidelity series of Temperature sensors with combined head mount transmitters utilize the latest technology. RTD or thermocouple sensors are placed in a thermowell rated for the process conditions. A 2-wire programmable or fieldbus transmitter is then used to send the output signal. The units have an inherent shield that minimizes operational stops and increases productivity by providing the transmitter with a high basic accuracy, maximum protection against electromagnetic noise, and an extremely low temperature coefficient. This reliability is reflected in quality and stability that can be directly converted into cost-savings as your down time is eliminated.



Data sheet

×

Model 800-IS Submersible Series



Spectre's 800-IS submersible pressure transducers is a high accuracy, all stainless steel device engineered for the most demanding level applications in Hazardous Areas. It's long term stability of the Fused Bond Sensor, and standard RFI/EMI protection provide the most rugged and reliable sensor for industrial and water management applications. The double jacketed, Kevlar core cable provides maximum protection against damage and cable collapse.



Data sheet

×

Model 861 Thin-Profile Submersible Transducer



Data sheet

×

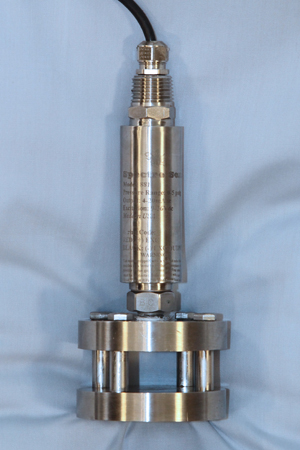

Model 881 Submersible Transducer



Data sheet

×

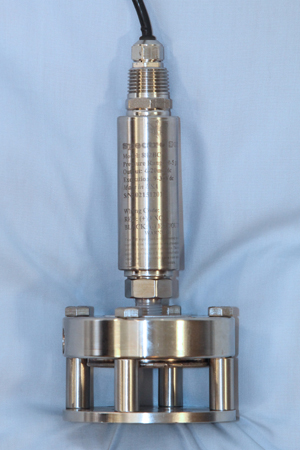

Model 882 Submersible Transducer



×

Model 885/8815 "Undrownable" Submersible Transducer



Data sheet

×

Model 2000 Precision Barometric Pressure Transducer



Spectre's Precision Series 2000 Pressure Transducers offer the first available sensors that are manufactured, designed and calibrated to each customers specific operating conditions. Each transducer output is digitally mapped to correct for any non-linearities or inaccuracies in the sensor. This digital correction and the inherent advantages of the fused bond sensor provide the most accurate and flexible transducer in the industry.



Data sheet

×

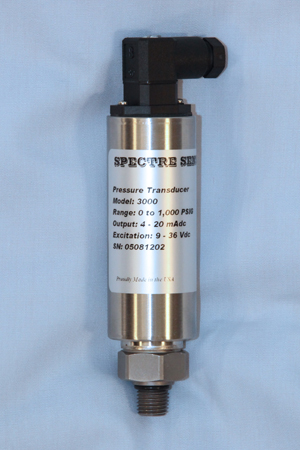

Model 3000 Hydraulic Pressure Transducer



The rugged design of the Spectre Model 3000 Hydraulic Series pressure transducer makes it the ideal choice when application conditions such as high vibration, shock and temperature extremes are present. Typical applications for the Model 3000 are industrial OEM equipment, injection molding, die casting and hydraulic systems with pressure spikes or highly cyclic conditions.



Data sheet

×

Model 8000 Precision Submersible Transducer



Spectre's Series 8000 Submersible Transducers offers the first available submersible sensors that are designed, manufactured and calibrated to each application's specific operating conditions. Each transducer's output is digitally mapped to correct for any non-linearity or inaccuracies in the sensing element. This digital correction provides the most accurate and flexible submersible transducer in the industry.



Data sheet

×

Model 8100 ANCHOR Submersible Transducer



Spectre's "ANCHOR" (Model 8100) submersible series of industrial pressure transducers is specifically designed to operate in applications that are problematic for traditional submersible level transmitters. The conditions encountered in many process sumps, sewage wet-wells and dirty applications may cause plugging and erroneous readings with standard designs. The ANCHOR has an oversized diaphragm and flow-through standoff which helps to prevent clogging and build-up which may cause inaccuracies. In addition, each transducer's output is digitally mapped to correct for any non-linearity or inaccuracies in the sensing element. This digital correction provides the most accurate and flexible submersible transducer in the industry.



Data sheet

×

Model 8500 Precision Submersible Combination Series



Spectre's 8500 Series Submersible Pressure Transducers offer the first available submersible sensors that are manufactured, designed and calibrated to each customers specific operating conditions. Each transducer output is digitally mapped to correct for any non-linearity or inaccuracies in the sensor. This digital correction and the inherent advantages of the fused bond sensor provide the most accurate and flexible transducer in the industry



Data sheet

×

SeaLevel 8700 Deep Water Submersible



Spectre's SeaLevel 8700 Submersible Transducers are specifically engineered for maximum corrosion resistance and the high depth pressures encountered in deep sea applications. The 8700 SeaLevel is manufactured, designed and calibrated to each customer's specific operating conditions. Each transducer output is digitally mapped to correct for any non-linearity or inaccuracies in the sensor. This digital correction and the inherent advantages of the one-piece, fused bond sensor provide the most accurate and flexible transducer in the industry.



Data sheet

×

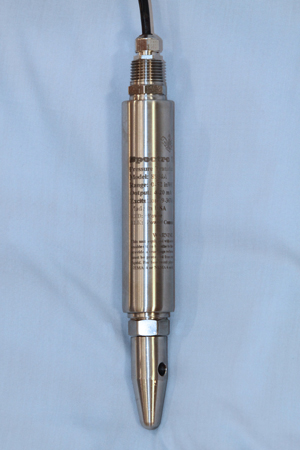

Model 8950/8951 "Undrownable" Submersible Transducer



Data sheet

×

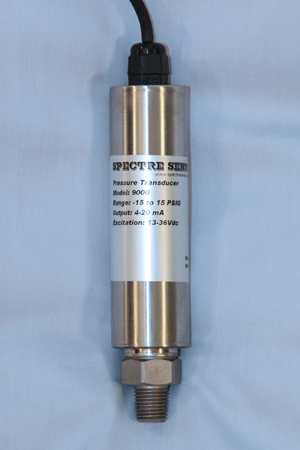

Model 9000 Precision Pressure Transducer



Spectre's Series 9000 is the first available pressure transducer that is designed, manufactured and calibrated to each application's specific operating conditions. Each transducer's output is digitally mapped to correct for any non-linearity or inaccuracies in the sensing element. This digital correction provides the most accurate and flexible pressure transducer in the industry.



Data sheet

×

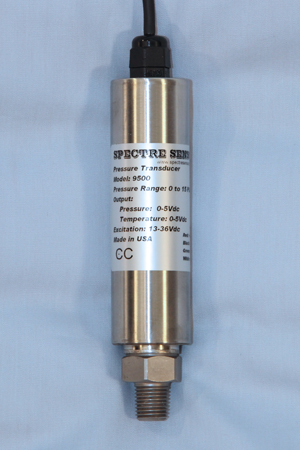

Model 9500 Precision Combination Series



Spectre's 9500 Precision Series Pressure Transducers offer the first available sensors that are manufactured, designed and calibrated to each customers specific operating conditions. Each transducer output is digitally mapped to correct for any non-linearity or inaccuracies in the sensor. This digital correction and the inherent advantages of the fused bond sensor provide the most accurate and flexible transducer in the industry. Additionally, the unit can be designed for high pressures and still retain accuracies in the lower pressure range (i.e.:10,000 psi sensor can accurately measure below 500 psi), or provide high accuracy in one specific area of the pressure range (i.e.: 500 psi sensor with highest accuracy band between 40-60 psi).



Data sheet

×

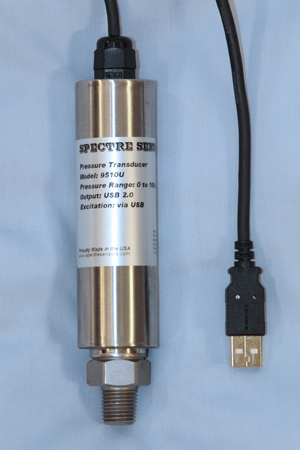

Model 9510U USB Enabled Pressure Transducer



Spectre's 9510U USB Pressure/Temperature Transducers offer the first precision USB 2.0 enabled sensors on the market that are designed and calibrated to each customer's specific operating conditions. Each transducer is digitally mapped to correct for any non-linearity or inaccuracies in the sensor. This digital correction provides the most accurate and flexible transducer in the industry.



Data sheet

×

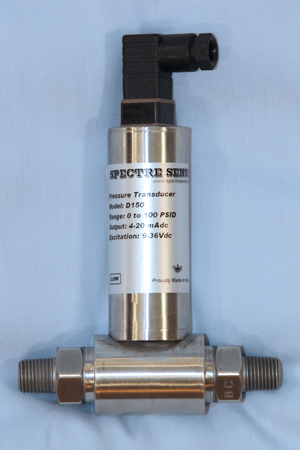

Model D150 Differential Pressure Transducer



Data sheet

×

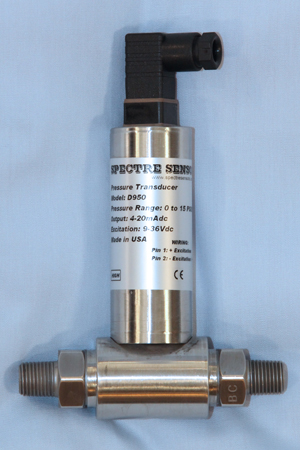

Model D950 Precision Differential Series Pressure/Temperature Transducer



Spectre's D950 Differential Series Pressure Transducers offer the first available sensors that are manufactured, designed and calibrated to each customers specific operating conditions. Each transducer output is digitally mapped to correct for any non-linearity or inaccuracies in the sensor. The Model D950 offers wet/wet differential pressure measurements of gases and liquids compatible with stainless steel.



Data sheet

×

EX46 Explosion Proof Transducer



Spectre's Series EX46 Explosion Proof and Intrinsically Safe Pressure Transducers are specifically engineered with proprietary Fused Bond sensor technology to eliminate the two most common problems with pressure transducers, noise and drift. The EX46 is approved to CSA (UL 1203) Class 1, Div. 1 Explosion proof – Groups A, B, C, D



Data sheet

×

Model S150 Sanitary Series Pressure/Temperature Transducer



Spectre's Sanitary S150 Series Pressure Transducers offer the first available sensors that are manufactured, designed and calibrated to each customers specific operating conditions. The Model S150 contains no internal O-rings making it ideal for critical pharmaceutical and chemical applications where product contamination is unacceptable.



Data sheet

×

Model S950 Precision Sanitary Series Pressure/Temperature Transducer



Spectre's S950 Sanitary Series Pressure Transducers offer the first available sensors that are manufactured, designed and calibrated to each customers specific operating conditions. The Model S950 is ideal for critical pharmaceutical and chemical applications where product contamination is unacceptable. Each Model S950 transducer output is digitally mapped to correct for any non-linearity or inaccuracies in the sensor.



Data sheet

×

UL300 Series Non-Incendive Pressure Transducer



Spectre's Series UL300 and UL310 Pressure Transducers are specifically engineered with proprietary Fused Bond sensor technology to eliminate the two most common problems with pressure transducers, noise and drift. The UL300 and UL310 (with zero & span) are approved to UL 1604 (CSA 123) for use in Class 1, Div 2, Group A, B, C & D hazardous areas



Data sheet

×

UL400 Series Intrinsically Safe Transducer



Spectre's Series UL410 and UL440 Intrinsically Safe Pressure Transducers are specifically engineered with proprietary Fused Bond sensor technology to eliminate the two most common problems with pressure transducers, noise and drift. The UL410 and UL440 (with zero & span) are approved to UL 913 (CSA 157) for use in Class 1, Div 1, Group C & D hazardous areas when used with a suitable safety barrier



Data sheet

×

M100 Transducer Mount Digital Meter



The M100 is a universal plug-on LED display suitable for use on transducers that have a DIN 43650, connector and 4-20mA output. The plug-on display simply fits between the plug and socket on any DIN 43650 (Form A) connector, The power is supplied from the 4-20mA current loop signal of the transducer. The unit is user-programmable from two buttons on the front panel enabling scaling and decimal point position. All are easily configured through the menu and configuration is stored in an EEPROM, ensuring that the programming is not lost in the event of power failure.


The display can be rotated through 360° for use in dif ferent installation positions, ensuring flexibility.



Data sheet

×

M430 Transducer Mount Digital Meter



The M430 is a universal plug-on LED display suitable for use on transducers that have a DIN 43650, connector and 4-20mA or 0-10 Vdc output. The plug-on display simply fits between the plug and socket on any DIN 43650 (Form A) connector, The power is supplied from the voltage or current signal of the transducer. The unit is user-programmable from two buttons on the front panel enabling scaling and decimal point position. All are easily configured through the menu and configuration is stored in an EEPROM, ensuring that the programming is not lost in the event of power failure.


The display can be rotated through 300° for use in different installation positions, ensuring flexibility



Data sheet

×

DC Voltage and Current Digital Panel Meters



These DC voltage and current meters combine high accuracy with high read rate and a wide range of optional isolated outputs for computer interface and control. Accuracy is 99.99% of full scale ±1 count. 5, 10 and 24 Vdc isolated excitation outputs are standard to power external devices such as transducers or transmitters. Plug-in isolated analog output, dual setpoint controller, and RS-232-RS-485, Modbus, and Ethernet boards can upgrade the display from a simple monitor to system interface and control.



Data sheet

×
