Electrical Connectors

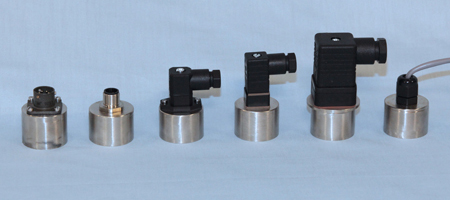

We list these standard connectors. Inquire if you need others.


  • EC4 6-Pin Bendix

  • Hirschmann

  • Large Din

  • Mini Din

  • Turck

  • Wire Leads

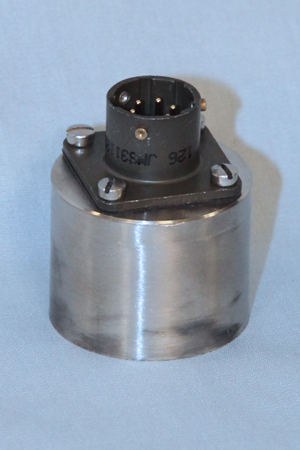

    • EC4 6-Pin Bendix

      Pin A

    • +excitation (4-20 mA)
    • +excitation (0-5 VDC, 0-10 VDC)

      • Pin B

    • -excitation (4-20 mA)
    • -excitation/-signal (0-5 VDC, 0-10 VDC)

      • Pin C

    • nc (4-20 mA)
    • +signal (0-5 VDC, 0-10 VDC)

      • Pin D (Model 1000)

    • nc (4-20 mA)
    • nc (0-5 VDC, 0-10 VDC)

      • Pin D (Model 1500)

    • +RTD (4-20 mA)
    • +RTD (0-5 VDC, 0-10 VDC)

      • Pin E (Model 1000)

    • nc (4-20 mA)
    • nc (0-5 VDC, 0-10 VDC)

      • Pin E (Model 1500)

    • -RTD (4-20 mA)
    • -RTD (0-5 VDC, 0-10 VDC)

      • Pin F

    • nc (4-20 mA)
    • nc (0-5 VDC, 0-10 VDC)

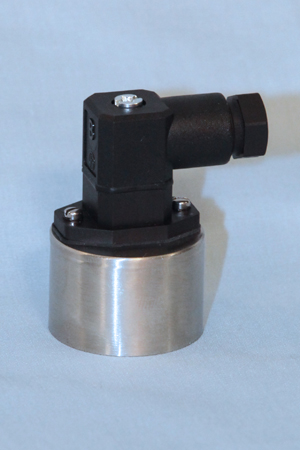

    Hirschmann

      Pin 1

    • +excitation (4-20 mA)
    • +excitation (0-5 VDC, 0-10 VDC)

      • Pin 2

    • -excitation (4-20 mA)
    • -excitation/-signal (0-5 VDC, 0-10 VDC)

      • Pin 3

    • nc (4-20 mA)
    • +signal (0-5 VDC, 0-10 VDC)

      • Pin 4

    • nc (4-20 mA)
    • nc (0-5 VDC, 0-10 VDC)

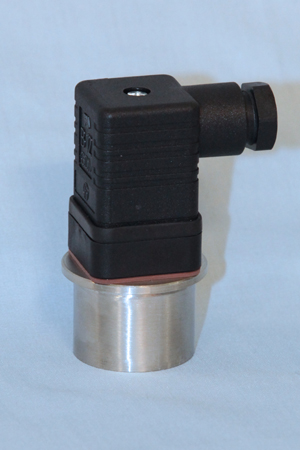

    Large Din

      Pin 1

    • +excitation (4-20 mA)
    • +excitation (0-5 VDC, 0-10 VDC)

      • Pin 2

    • -excitation (4-20 mA)
    • -excitation/-signal (0-5 VDC, 0-10 VDC)

      • Pin 3

    • nc (4-20 mA)
    • +signal (0-5 VDC, 0-10 VDC)

      • Pin 4

    • nc (4-20 mA)
    • nc (0-5 VDC, 0-10 VDC)

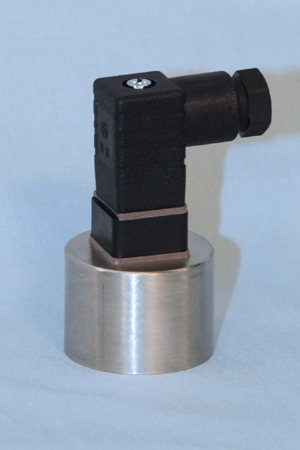

    Mini Din

      Pin 1

    • +excitation (4-20 mA)
    • +excitation (0-5 VDC, 0-10 VDC)

      • Pin 2

    • -excitation (4-20 mA)
    • -excitation/-signal (0-5 VDC, 0-10 VDC)

      • Pin 3

    • nc (4-20 mA)
    • +signal (0-5 VDC, 0-10 VDC)

      • Pin 4

    • nc (4-20 mA)
    • nc (0-5 VDC, 0-10 VDC)

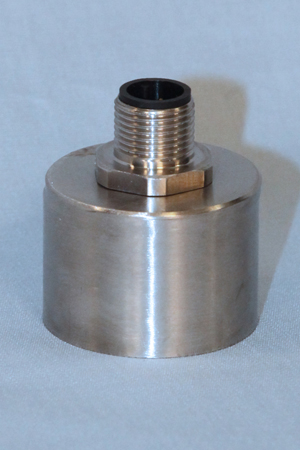

    Turck

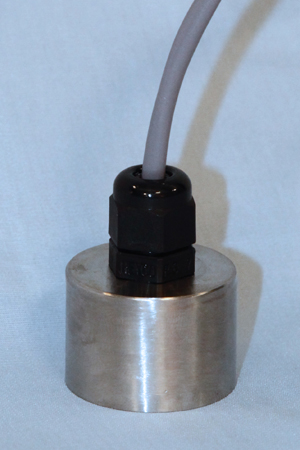

    Wire Leads

      Pin red

    • +excitation (4-20 mA)
    • +excitation (0-5 VDC, 0-10 VDC)

      • Pin black

    • -excitation (4-20 mA)
    • -excitation/-signal (0-5 VDC, 0-10 VDC)

      • Pin green

    • nc (4-20 mA)
    • +signal (0-5 VDC, 0-10 VDC)
